Vacuum Mixer

Buy Now
Add To Cart
Contact Supplier
Choose your specifcations
$ 10400.00 ~ $ 26175.00
Please select specification
SJ:
600L
900L
1000L
1200L
1300L
Quantity:
Quick Details
Product Code：
Vacuum Mixer
OEM：
Available
Sample:
Available
Payment:
Western Union,T/T
Place of Origin：
China
Supply Ability：
200 set per month
Quick Details
  • Brand
    Leadmark
  • Application
    paints/coatings/inks/putty/silicone/sealant/cosmetic/glues
  • Voltage/Hertz
    customize
  • Capacity
    150-1300L
  • Motor Type
    Explosion proof
  • Shafts
    2
  • Bearing
    NSK/SKF
  • Scrape the wall function
    Yes
  • Certificate
    CE
  • Vacuum Tank
    Included
  • Advantage
    Total Explosion proof
  • Frequency converter
    Yes
  • Color
    customize
  • Port
    Guangzhou/shenzhen
  • Lead Time
    10-15days
  • hydraulic range
    700-1100
  • High Speed Motor Power
    11-37KW
  • Low Speed Motor Power
    7.5-22KW
  • Dispersing impeller Dia
    200-300mm
  • Mixing Impeller Dia
    570-1260mm
  • High Shaft Speed
    0-1470r/m
  • Low Shaft Speed
    60-120r/m
  • Cooling/heating
    Optional
OK
Shipping fee
Shipping fee
Product Description

high speed liquid with solid agitator equipment,industrial mixer for printing ink,adhesion agent



high speed liquid with solid agitator equipment,industrial mixer for printing ink,adhesion agent

high speed liquid with solid agitator equipment,Vacuum Mixer for printing ink,adhesives, glues, putty


1.Panel controller:easy to operation ,you can control the lifting system and revolution system and power switch though the panel

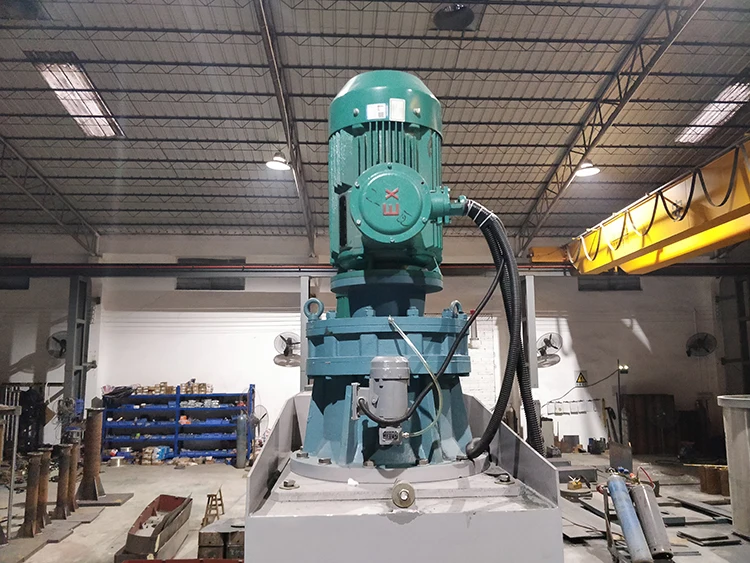

 2.Safe and efficient:The Model have Explosion protection system ,lifting system and Speed Controller system
3.Wide application:from low viscocity to high viscocity,all of them can be done ,liquid and  solid particle both of them can be dispersing,disovling ,mixing
4. application area : printing ink,adhesives, glues, putty,drystuff and so on
high speed liquid with solid agitator equipment,industrial mixer for printing ink,adhesion agent
high speed liquid with solid agitator equipment,industrial mixer for printing ink,adhesion agent
high speed liquid with solid agitator equipment,industrial mixer for printing ink,adhesion agent

Detail processing

Use the locking buckle to clamp the dispersion cylinder

 Revolution meter

That is part of the panel controller which also have speed  control and lifting control function

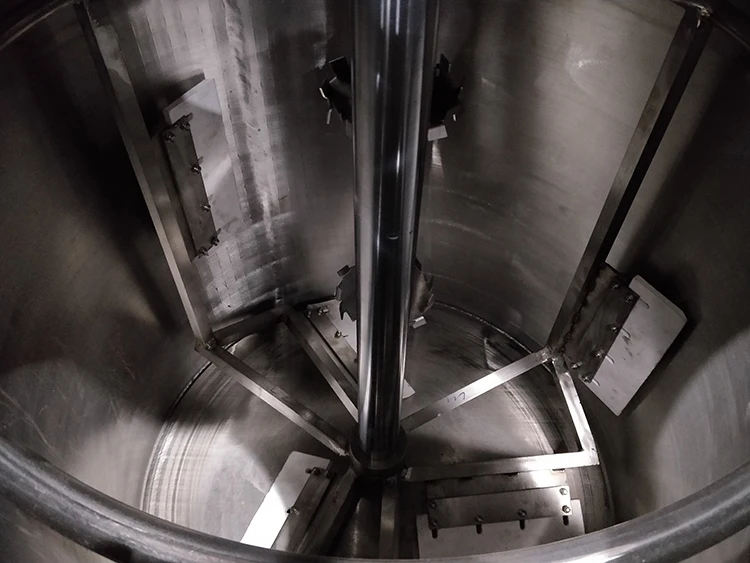

Butterfly double-shaft

This design is aim at high viscocity material

Why choose this product:

High efficiency mixing equipment applicable for high viscosity, to make material dispersing, dissolve and mixing uniform. It is widely used in production of concerned chemical products  such as printing ink,adhesives, glues, putty,dyestuff and so on.



Type
SJ-600
SJ-900
SJ-1000
SJ-1200
Tank capacity (L)
150
500
600
1000
 High speed motor power (kw)
11
22
22
30
 Low speed motor power (kw)
7.5
22
22
22
Diameter of high speed dispersing disc
200
250
280
300





high speed liquid with solid agitator equipment,industrial mixer for printing ink,adhesion agent

 high speed liquid with solid agitator equipment,industrial mixer for printing ink,adhesion agenthigh speed liquid with solid agitator equipment,industrial mixer for printing ink,adhesion agenthigh speed liquid with solid agitator equipment,industrial mixer for printing ink,adhesion agent
