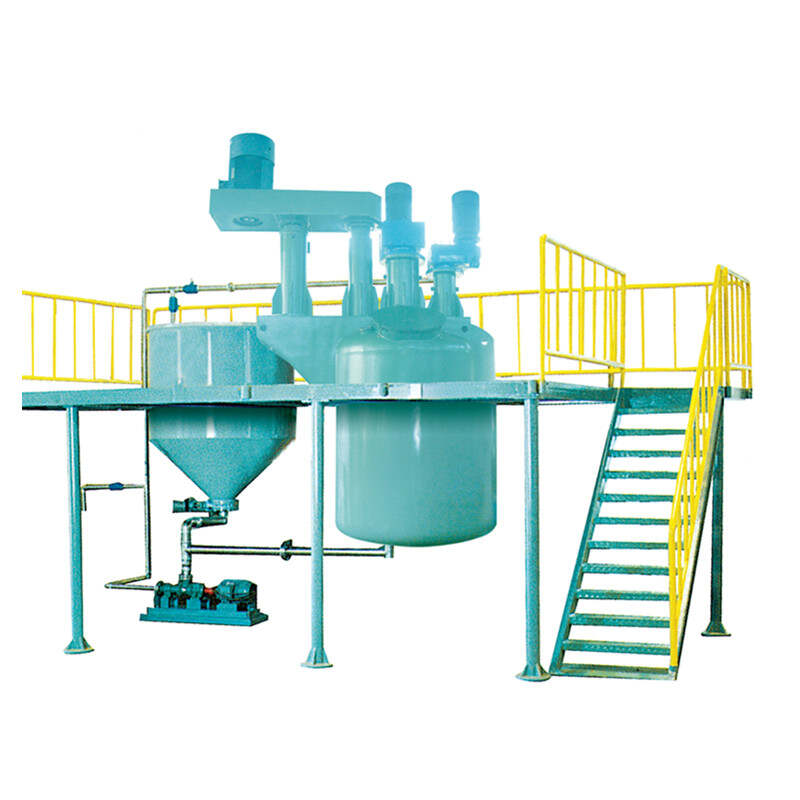

Platform Mixer

Buy Now
Add To Cart
Contact Supplier
Choose your specifcations
$ 29250.00 ~ $ 51800.00
Please select specification
TCJ:
1000L
2000L
3000L
4000L
5000L
Quantity:
Quick Details
Product Code：
Platform Mixer
OEM：
Available
Sample:
Available
Payment:
Western Union,T/T
Place of Origin：
China
Supply Ability：
100 unit per month
Quick Details
  • Brand
    Leadmark
  • Voltage/Hertz
    customize
  • Dispersing Motor Power
    30-132KW
  • Mixing Motor Power
    11-22kW
  • Capacity
    1000-5000L
  • Dipsersing Speed
    0-1500r/m
  • Mixing Speed
    0-170r/m
  • Motor Type
    Explosion proof
  • Certificate
    CE
  • Frequency converter
    Yes
  • Bearing
    NSK/SKF
  • Application
    paints/coatings/pigments/sealants/silicone/adhesive/glue/putty/inks/dyes/paper making
  • Colling/heating
    Optional
  • Electric Cabin
    Explosion proof
  • Shafts
    2/3
  • Drawings
    Included
  • Frequency converter
    Yes
  • Vacuum function
    Optional
  • Platform
    Optional
  • cooling/heating
    Optional
  • Sea Port
    Guangzhou/Shenzhen
  • Lead time
    15-30days
OK
Shipping fee
Shipping fee

Dispersion Machine, dissolving machine, mixer equipment For ink,paint



Platform Mixer, dissolving machine, mixing equipment For paints/coatings/pigments/sealants/silicone/adhesive/glue/putty/inks/dyes/paper making

● Powerful mixing and dispersing capability to

make material meet demand in short time

● Finished material can be packed into container

directly via pneumatic valve and transmission

pump at the bottom of tank

● There is material collecting device on mixer inside

the tank to make tank clear. no material sticking

inside the tank

● Easy cleaning when change color and products

also for water based material

● Easy instllation for combination of main unit

and steel platform. Also easy production and

operation

● Various main unit power for different viscosity

paste material





Total explosion proof.

Total explosion proof, make production safe enough.

 Large batch production

Especially suitable for large batch production, high efficient.

Core of Full production line

This dispersing machine is core of the full production line. Which set up on platform save space and secure.

What This Platform Disperser could Do?


1)Applicable for low, medium and high viscosity material mixing (3000-20000cps);


2)The low speed blade rotate around tank wall, to push the material on wall and corner to central to prevent vapor pocket and bad formula，also for easy cleaning;


3)High speed gear impeller can disperse powerfully and mixing in short time; The high speed and low speed can operate independently.


Date Sheet



 Type
TCJ1000L
TCJ2000L
TCJ3000L
TCJ4000L
Dispersing Motor power (kW)
30
55
75
90
Speed (r/min)
0-1500
0-1200
0-1200
0-1000
 Capacity (L)
1000
2000
3000
4000
Lift (mm)
  1500
1500
1800
2200
Mixing Motor
  11  20 2022
