Large Flow Bead Mill

Buy Now
Add To Cart
Contact Supplier
Choose your specifcations
$ 19500.00 ~ $ 173880.00
Please select specification
CDS:
5
20
30
50/60
100
300
500
Quantity:
Quick Details
Product Code：
Large Flow Bead Mil
OEM：
Available
Sample:
Available
Payment:
Western Union,T/T
Place of Origin：
China
Supply Ability：
100 unit per month
Quick Details
  • Brand
    Leadmark
  • Application
    Paints/Inks/Coatings/Pigments/dyes
  • Voltage/Hertz
    customized
  • Motor Power
    4-200KW
  • Motor Type
    Explosion proof
  • Speed
    0-1600r/m
  • Advantage
    Total Explosion proof
  • Frequency converter
    YES
  • Vessel Capacity
    5-1000L
  • cooling system
    YES
  • Zirconium bead size
    0.2-1.8mm
  • Zirconium bead quantity
    70-80%
  • With diaphragm pump
    YES
  • Grinding Fineness
    5um-15um
  • Mechanical Cooling
    YES
  • Mechanical Sealing
    YES
  • Material
    SS304/alloy steel/high molecular material
  • production capacity(kg/h)
    50-5000
  • Zirconium bead
    Exclueded
  • Color
    Customized
  • Sea Port
    Guangzhou/Shenzhen
  • Lead time
    30days
  • Warranty year
    1
OK
Shipping fee
Shipping fee
Product Description

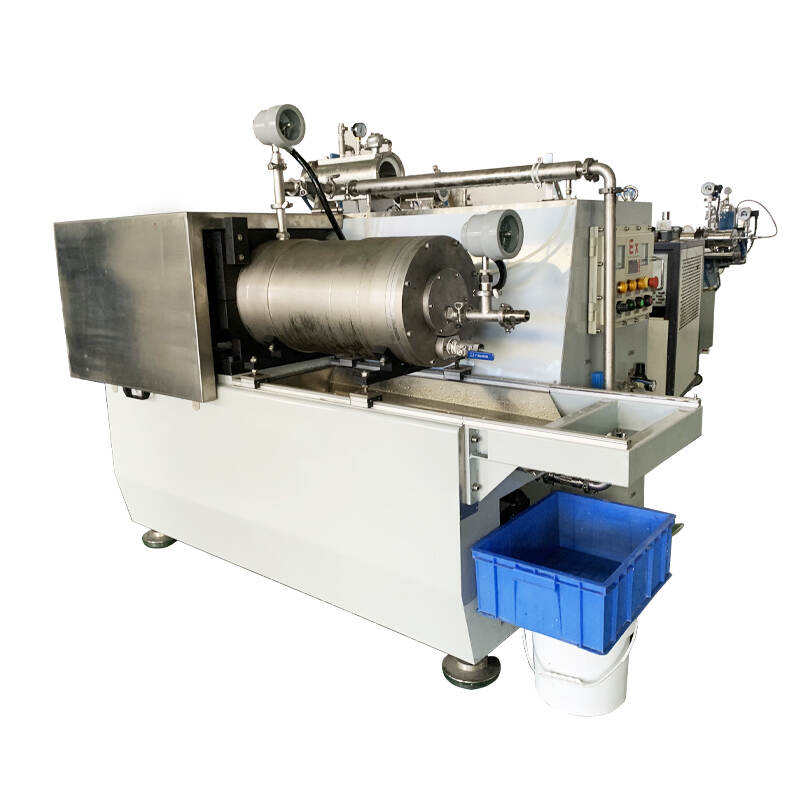

Horizontal sand mill and grinding mill to make pigment/Ink/Paint

1.Adopt Centrifugal Technology :Enhanced flow rate capacity by centrifugal implement screen.



2.Explosion Protection system :Pressure detector,Temperture detector, voltage detector,  the control panel can obtained information from the detectors.



3.Easy to exchange product contact parts:Equipment is hard to break, and this design for exchange parts greatly reduces the likelihood of maintenance



4. Cooling system:Timely cooling of materials

.jpg

Cooling detector

Cooling detector is a part of the cooling system,You can control the speed of the cooling book cycle

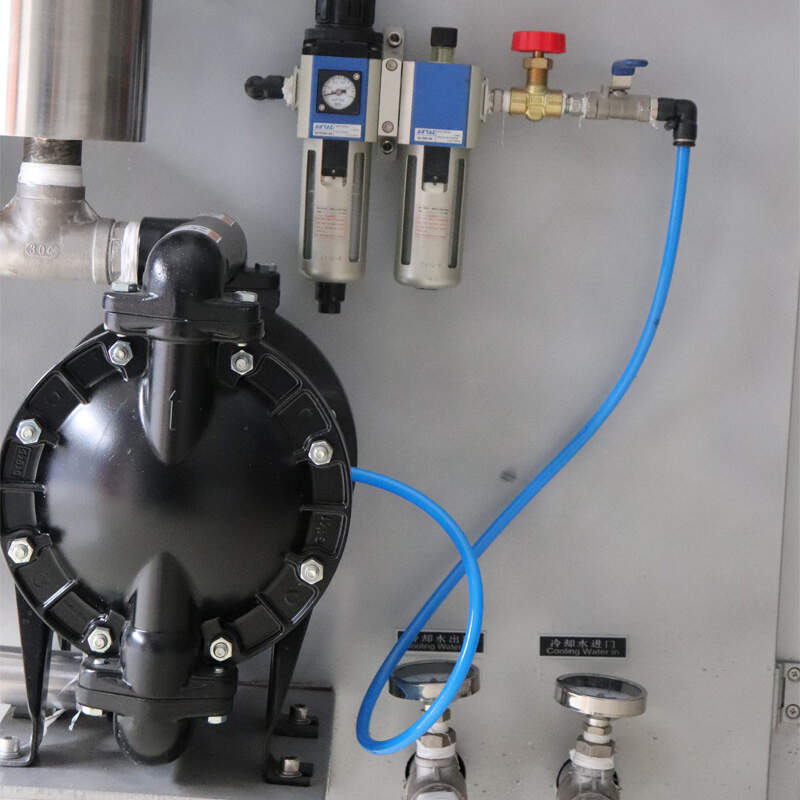

Material Pump

 Material pump is part of the material system ,can control the speed of the  material by the control pannel

Explosion proof Electricity Panel

The indicator light on the control panel can also be used to check whether the material works under normal conditions

Why choose this product:

The new full-volume Dynamic-Centrifugal-Cartridge-System offers optimized energy saving wet milling technology  by  con-sequent  combination  of  a  multitude of newly developed and ideally matching functional elements. High efficiency grinding discs with a large-surface slotted sieve to get the better beads distributed in the mill chamber. Enhanced flow rate capability by centrifugal implement screen.



Type
CDS-2
CDS-5
CDS20
CDS30
Main Motor Power(KW)
18.5~22
22~30
37~45
55~75
Vessel Capacity(L)
20
30
50/60
100
Maximun Flow Rate
50~250
100-500
200~1000
250~2500
Type
CDS-50/60
CDS-100
CDS300
CDS500
Main Motor Power(KW)
18.5~22
22~30
37~45
55~75
Vessel Capacity(L)
20
30
50/60
100
Maximun Flow Rate
50~250
100-500
200~1000
250~2500











Our Company



Guangdong Leadmark Chemical Machinery Co., Ltd. is specialized in the design, development, production and sales of chemical machinery and complete sets of non-standard chemical equipment. Our company mainly products: high-speed dispersing machine, vacuum dispersing machine, high-viscosity mixer, horizontal sanding machine, basket sanding machine, three-roller machine, reaction kettle, high-speed dispersion kettle, multi-functional dispersion Chemical equipment such as kettles and stainless steel pull cylinders. Our company have rich production experience, strong technical force, strong R & D team, flexible design and production of various standard and non-standard equipment base on the needs of users, our company adheres to the integrity-based, quality assurance, service quality, multi-variety Operating characteristics and service concept .Our professional and experienced service engineers will give you the most professional solutions and services. Our company is based on the principle of "customer first, quality and service". In additon,we could supply products with high quality and reasonable price.
