Horizontal Mill

Buy Now
Add To Cart
Contact Supplier
Choose your specifcations
$ 5200.00 ~ $ 9635.00
Please select specification
HSM:
5
15
20
30
40
50
60
Quantity:
Quick Details
Product Code:
Horizontal Mill
OEM:
Available
Sample:
Available
Payment:
Western Union,T/T
Place of Origin:
China
Supply Ability:
200 unit per month
Quick Details
  • Brand
    Leadmark
  • Application
    paints/glaze/coatings
  • Voltage/Hertz
    customized
  • Motor Power
    5.5-45KW
  • Motor Type
    Explosion proof
  • Speed
    500-1600r/m
  • Certificate
    CE
  • Frequency converter
    YES
  • Advantage
    Total Explosion proof
  • Vessel Capacity
    5-60L
  • cooling system
    Yes
  • Zirconium bead size
    0.8-2mm
  • Zirconium bead quantity
    70-80%
  • With diaphragm pump
    Yes
  • Grinding Fineness
    20um-50um
  • Mechanical Cooling
    Yes
  • Material
    Super hard alloy steel
  • production capacity(kg/h)
    15-1300
  • cooling water consumption
    1.5-2m³/h
  • Products viscosity
    <10 Pa.S
  • Pumping capacity
    0-40L/m
  • Disc No.
    6-15pcs
  • Zirconium bead
    Exclueded
  • Color
    Customized
  • Sea Port
    Guangzhou/Shenzhen
  • Lead time
    30days
  • Warranty year
    1 year
OK
Shipping fee
Shipping fee
Product Description

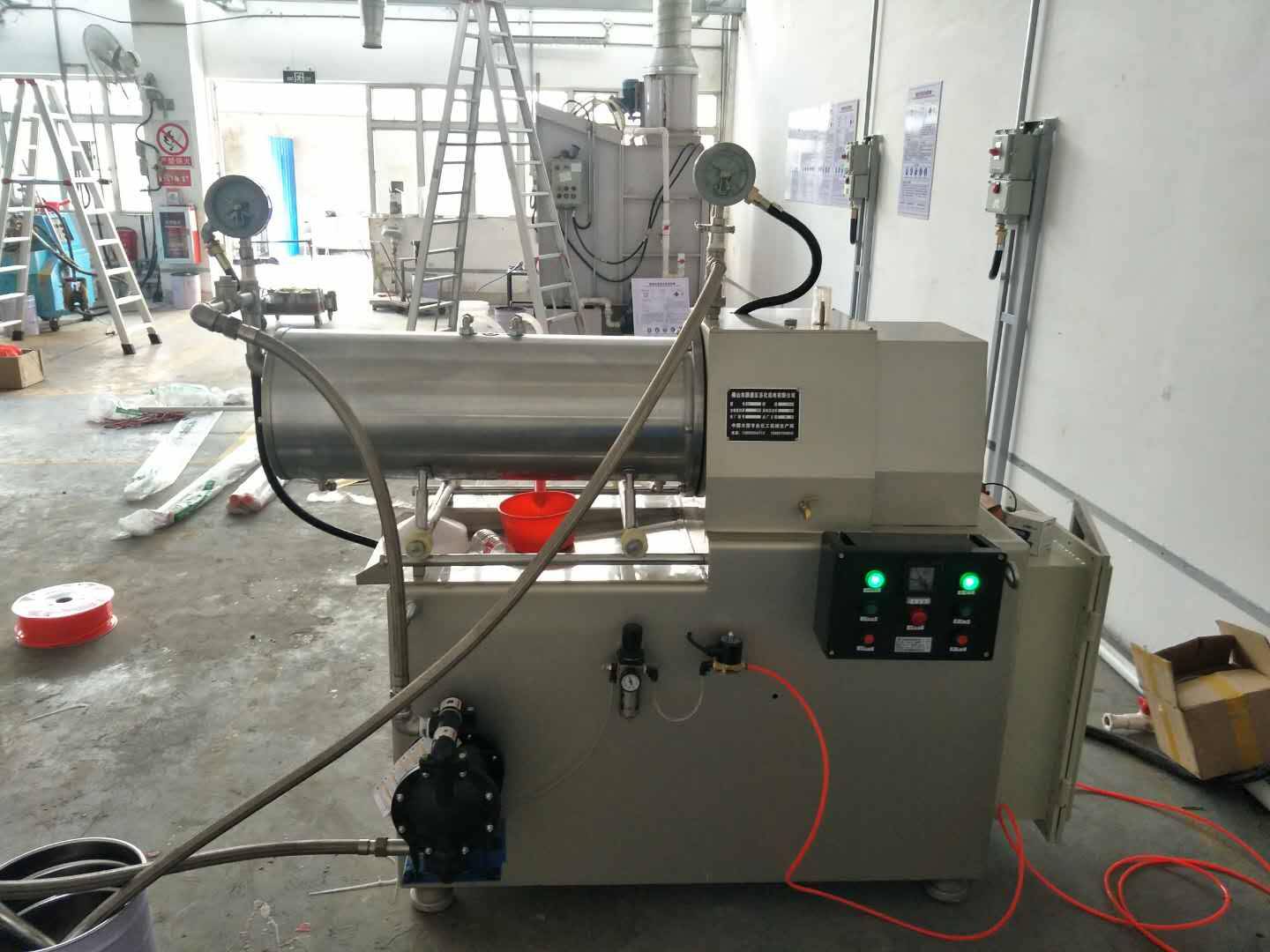

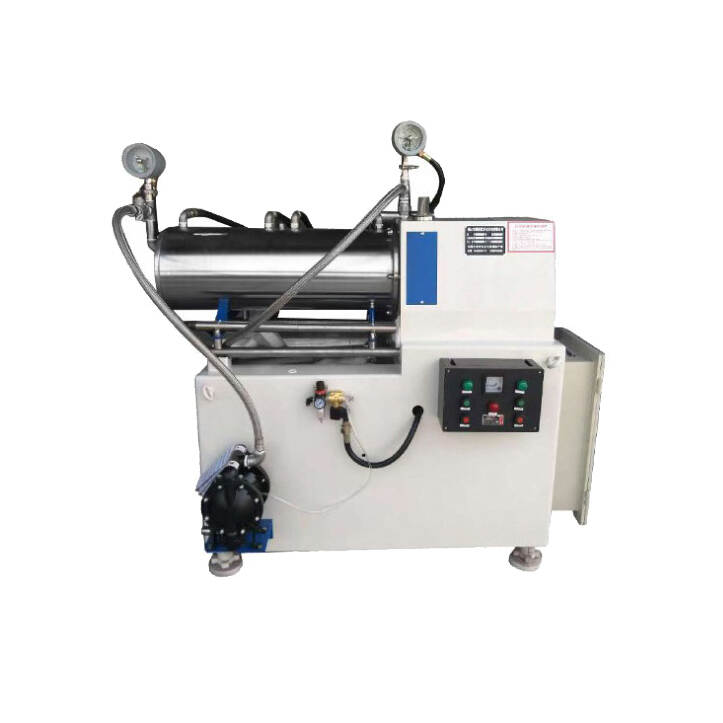

50L high quality sand mill ink special sand mill



Horizontal Mill

1.5-60L Simplified Volume Can be Choose



2.Solve the problem of 20um-50mm finess



3.Explosion Protection system :Pressure detector,Temperture detector, voltage

detector,  the control panel can obtained information from the detectors.



4.Resolve frequent change of core parts



5.Lifespan more than 10 years,Maintenance probability is very low





Product Introduction:

 New design with energy saving, high effeciency, easy operation, easy maintenance,cleaning and changing color. Applicable for Paint,coatngs,Pigment,Coating and so on. Solve the problem of 20um-50mm finess.

this model is a Low energy consumption and high output energy saving high precision grinding machine



Model/sizeHSM15AHSM5AHSM20AHSM30AHSM40AHSM50AHSM60A
Main motor power (kw)5.51518.52230 3030
Dispersion axis speed (r/min)12001230~15301160~ 13501000 ~1300890`~ 1160800 ~1100800 ~1100
Number of scattered disks (one)68911131313
Pumping capacity (L/min)0-170-17  0-170-17 0-40 0-400-40
 Medium load (L)3-4.256.5-12.75101715-25.520-3425-42.530-51



50L high quality sand mill ink special sand mill



50L high quality sand mill ink special sand mill



Related Product

Our Company

50L high quality sand mill ink special sand mill

Guangdong Leadmark Chemical Machinery Co., Ltd. is specializing in the design, development, production and sales of chemical machinery and complete sets of non-standard chemical equipment. Our company mainly products: high-speed dispersing machine, vacuum dispersing machine, high-viscosity mixer, horizontal sanding machine, basket sanding machine, three-roller machine, reaction kettle, high-speed dispersion kettle, multi-functional dispersion Chemical equipment such as kettles and stainless steel pull cylinders. Our company have rich production experience, strong technical force, strong R & D team, flexible design and production of various standard and non-standard equipment base on the needs of users, our company adheres to the integrity-based, quality assurance, service quality, multi-variety Operating characteristics and service concept .Our professional and experienced service engineers will give you the most professional solutions and services. Our company is based on the principle of "customer first, quality and service". In additon,we could supply products with high quality and reasonable price.Choosing us,we would not let you down.
