Double Shafts Disperser

Buy Now
Add To Cart
Contact Supplier
Choose your specifcations
$ 5160.00 ~ $ 11000.00
Please select specification
FLB:
22KW
30KW
37KW
45KW
55KW
Quantity:
Quick Details
Product Code:
Double Shafts Disperser
OEM:
Available
Sample:
Available
Payment:
Western Union,T/T
Place of Origin:
China
Supply Ability:
350 set per month
Quick Details
  • Brand
    Leadmark
  • Voltage/Hertz
    Could be customized
  • Motor Power
    22-55KW
  • Motor Type
    Explosion proof
  • Speed
    0-1450 r/m
  • Type
    Agitator
  • Electric Cabine
    Explosion proof
  • Certificate
    CE
  • Impeller Dia
    300-450mm
  • Hydraulic lifting
    Yes
  • Pressure meter
    Yes
  • Frequency converter
    Yes
  • Advantage
    Total Explosion proof
  • Application
    Paints/coatings/pigments/inks/pesticide manufacture
  • Shafts
    Double
  • Pump Power
    1.5-2.2KW
  • Capacity
    1000-3000L
  • Max Lifting Range
    1200-1500mm
  • Bearing
    NSK/SKF
  • Shaft/impeller Material
    SS201/SS304
  • Lead time
    3-7days
  • Tank
    optional
  • Clamp
    optional
  • Hydraulic oil
    optional
  • Color
    Standard Blue/customize
  • Shaft Dia
    65mm
  • Sea port
    Guangzhou/Shenzhen
OK
Shipping fee
Shipping fee

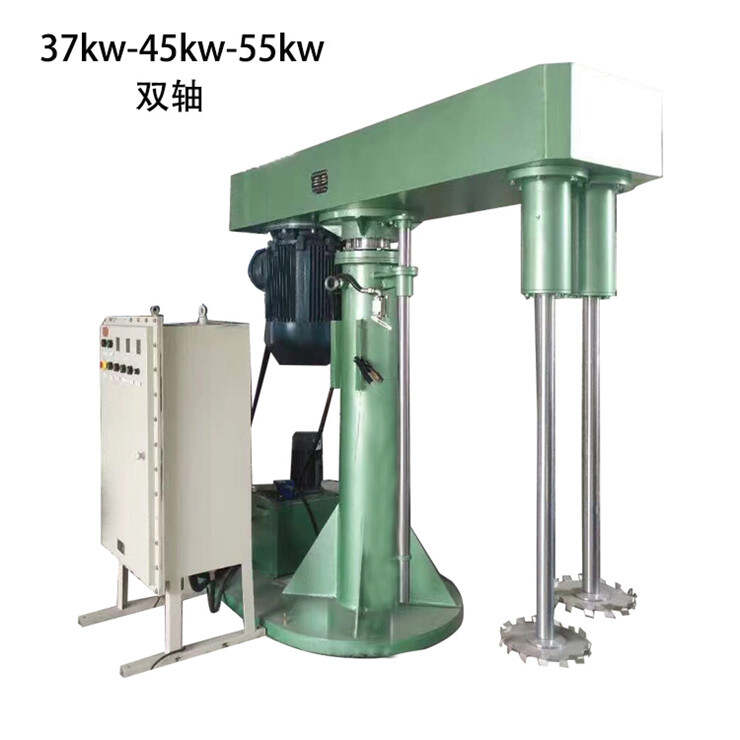

Double Shafts Disperser
Product Description




Industrial dispersion machine and dispersing dissolver and paint mixer

1.Multifunction :Mix,Dissolve,Disperse



2.Range of application :Two or more kinds of liquid and powder material



3.Application area : Producing paint,ink,coating ,dyestuff ,paper making and so on chmical industry



4.Hydraulic system :  control the machine lifting in order that putting the mixing tank



5.Explosion protection system: Can be choose



6.failure rate is very low,we offer video online support,free parts support,oversea service support


1.  Explosion-proof motor                 pure copper wire is quiet and efficient with a service life of more than 10 years

 2. Dispersing Plate

Any Style and size can choose,and mixing tank as the same

3.Hydraulic System

control the machine lifting in order that putting the mixing tank

 Why choose this product ?

The machine main fuction as below:
1. Strong Stiring. Especially good for higher viscosity materials dissolving and dispersing. Especially good for oil-base             Paints Production.
2. Carry out mixing and dispersing at the same time. Good quality;
3. Good explosive proof function.



Type
FLB22
FLB30/37
FLB45/55
Power (kw)
22
30/37
45/55
Speed (r/min)
0~1450
0~1200
0~1200
Impeller dia. (mm)
350
400
450
Elevating height (mm)
1200
1200-1500
1200
Container capacity (L)
600-1000
1000-2000
1500-2500








Related Product

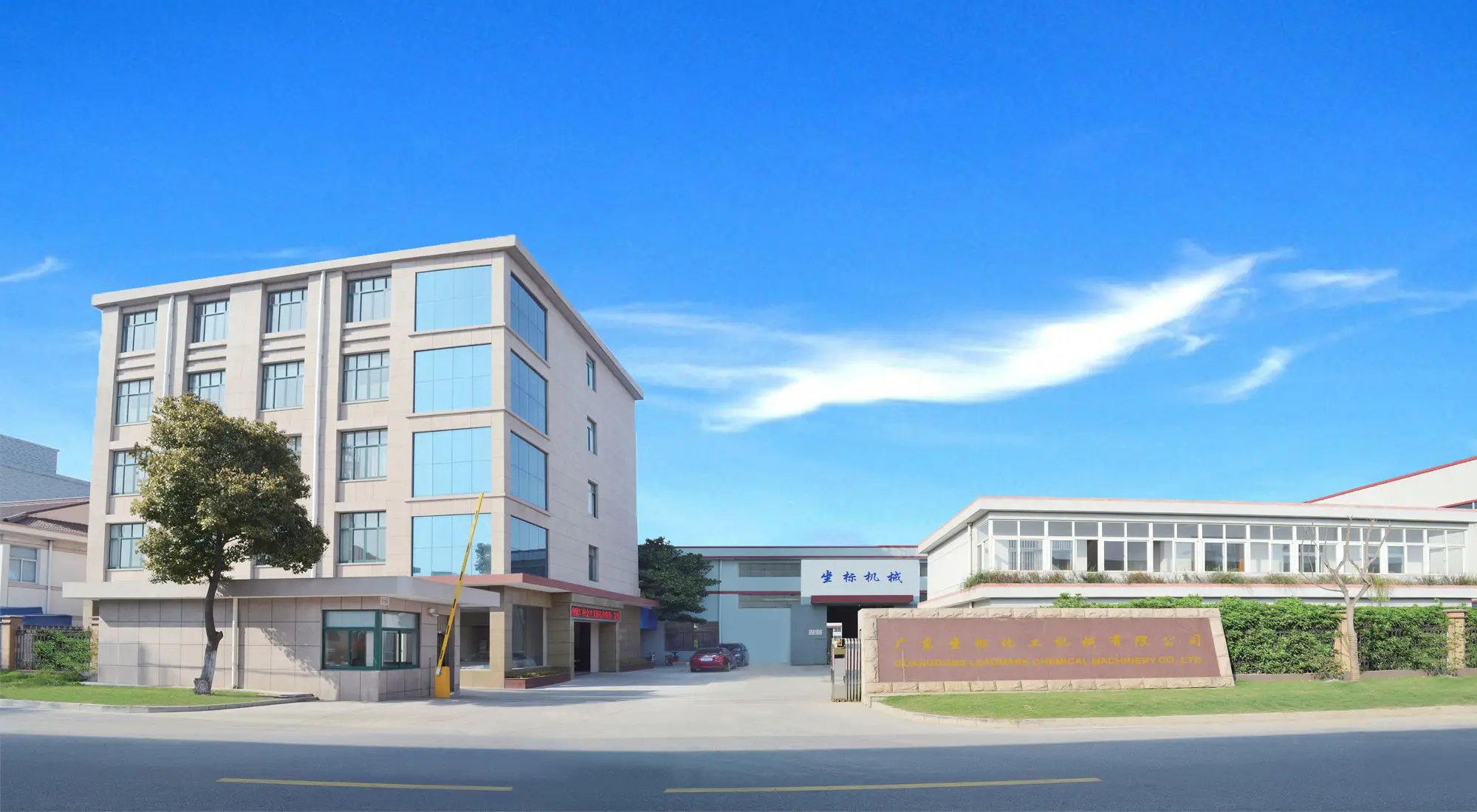

Company Information
