Quick Details
Product Code：
Basket Mill
OEM：
Available
Sample:
Available
Payment:
Western Union,T/T
Place of Origin：
China
Supply Ability：
200 unit per month
Quick Details
  • Brand
    Leadmark
  • Voltage/Hertz
    customized
  • Motor Power
    0.75-37KW
  • Motor Type
    Explosion proof
  • Speed
    500-2000r/m
  • Certificate
    CE
  • Hydraulic lifting
    260-1050mm
  • Frequency converter
    Yes
  • Advantage
    Total Explosion proof
  • Application
    paints/glaze/coatings/inks/pigment/dyes
  • Vessel Capacity
    3-40L
  • Pump Power
    0.75-1.5KW
  • Tank
    Optional
  • cooling/heating
    Optional
  • Zirconium bead
    1.2-2.0mm
  • Zirconium bead
    Optional
  • Zirconium bead quantity
    10-100KG
  • Bearing
    NSK/SKF
  • Hydraulic oil
    optional
  • Sea Port
    Guangzhou/Shenzhen
  • Lead time
    10 days
OK
Shipping fee
Shipping fee
Product Introduction:

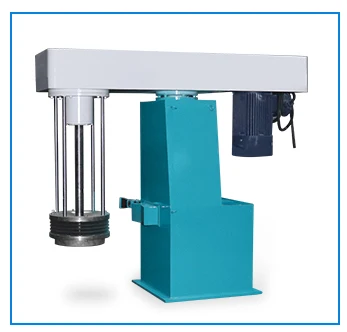

Easy maintenance high efficiency Grinding Basket Mixer for paint making process

Easy maintenance high efficiency Grinding Basket Mill for paint/inks/coatings/glaze/pigments making process

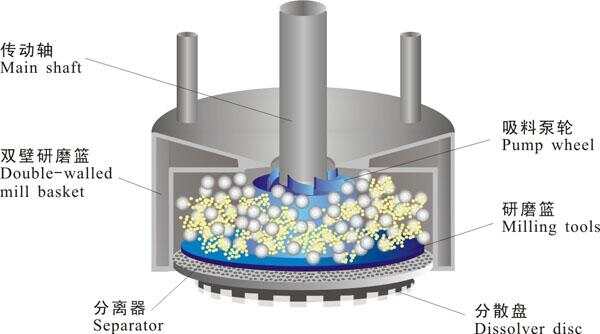

Working principle:
1.Suction material: the self-priming pump blade rotates at high speed, producing strong suction force and eddy current, which will suck the material into the grinding disc.

 2.Dispersion:dispersion disc rotate to generate centrifugal force ,swing out the material in the grinding basket , accelerate the material dispersion.

 3.Process:Efficient dispersing mill: the pump blade rotates at high speed to suck the material into the grinding basket -- > precision grinding -- > dispersing plate dispersing -- > dischargin

Advantages:


This machine combines both milling and dispersing function. New design with energy saving, high effeciency, easy operation, easy maintenance,cleaning and changing color. Applicable for independent tank operation and high / low viscosity products.

Type
LS-3
LS-10
LS-20
LS-40
Paste capacity (L)
2~3
100~150
200~500
400~1000
Main motor power (kw)
0.75
11
22
30~37
Main shaft speed (r/min)
0-3000
0-800
0-600
0-500
Range of up and down (mm)
260
800
900
1050
 Oil pump power (kw)
-
0.75
1.1
1.5
 Weight (kg)
80
1500
2500
2800
Overall dimension (mm)
350×250×700
1860×710×1730
2145×860×1955
2600×920×2100
