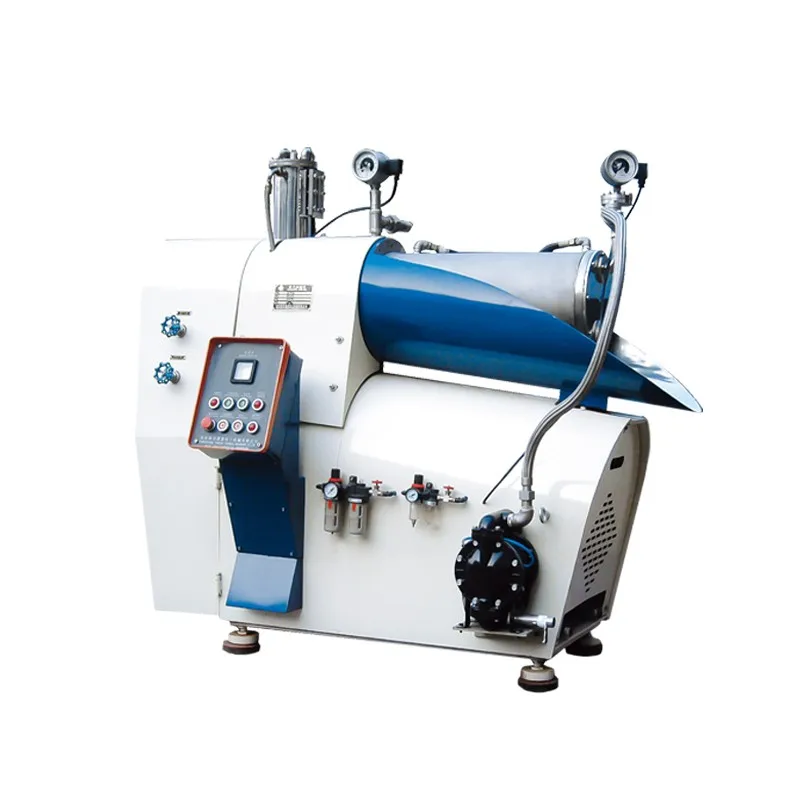

Disc Bead Mill

Buy Now
Add To Cart
Contact Supplier
Choose your specifcations
$ 9750.00 ~ $ 56335.00
Please select specification
SW:
5A
15A
20A
30A
50A
250A
Quantity:
Quick Details
Product Code：
Disc Bead Mill
OEM：
Available
Sample:
Available
Payment:
PayPal,Western Union,L/C,T/T
Place of Origin：
China
Supply Ability：
100 unit per month
Quick Details
  • Brand
    Leadmark
  • Application
    coating/paints/printing/ink/pesticide/Pigments/dyes
  • Voltage/Hertz
    customized
  • Motor Power
    5.5-75KW
  • Motor Type
    Explosion proof
  • Speed
    0-1600r/m
  • Advantage
    Total Explosion proof
  • Frequency converter
    YES
  • Vessel Capacity
    5-250L
  • cooling system
    YES
  • With diaphragm pump
    YES
  • Mechanical Sealing
    YES
  • Zirconium bead
    Exclueded
  • Zirconium bead size
    0.2-1.8mm
  • Grinding Fineness
    around 10um
  • Material
    SS304/alloy steel
  • Zirconium bead quantity
    75-85%
  • production capacity(kg/h)
    20-1500KG
  • Sea Port
    Guangzhou/Shenzhen
  • Lead time
    15-30days
  • Warranty year
    1year
OK
Shipping fee
Shipping fee
Product Description
 Type
SW-5A
SW-15A
SW-20A
SW-30A
SW-50A
 Tank capacity (L)
5
15
20
30
50
 Motor power (kw)
5.5
11
18.5
22
37
Production capacity (kg/h)
20~100
30~200
40~300
50~600
100~1000
Finess (μ/m)
2-20
2-20
2-20
2-20
2-20

Introduction For Machine

 The machine adopts double-acting mechanical sealing with reliability and durability, mated with the Cooling liquid compatible to the ground material in order to reduce the pollution of ground material, suitable for grinding materials in coating, oil painting, printing ink and pesticide industries.It makes the material into aggressiveness and give the strong grind so that the grains reaches the required fineness in short time. The machine is easily operated with reliability and high production efficiency. Depending to different requirements, the different models of machines can satisfy with customers.

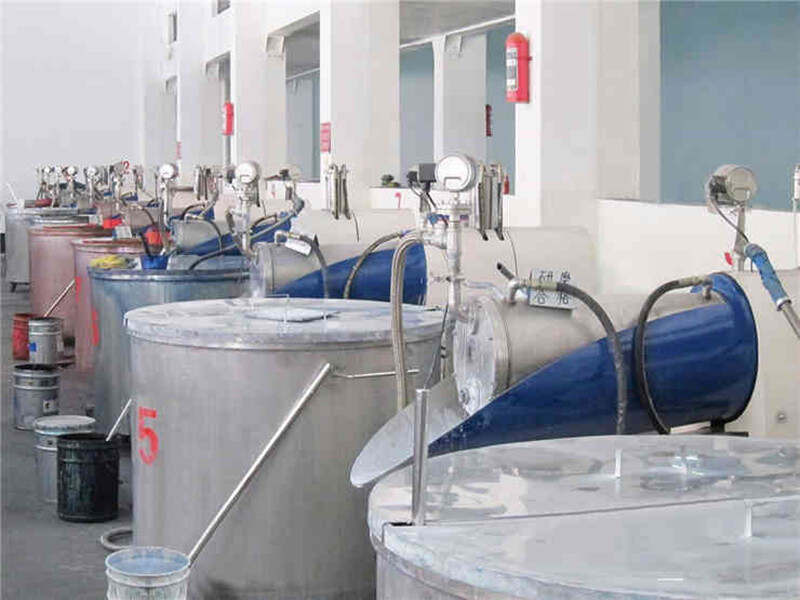

Cases:

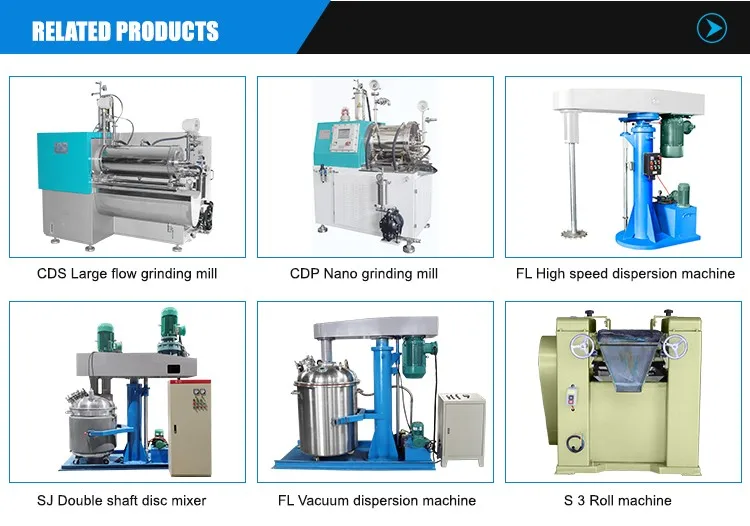

Related Products

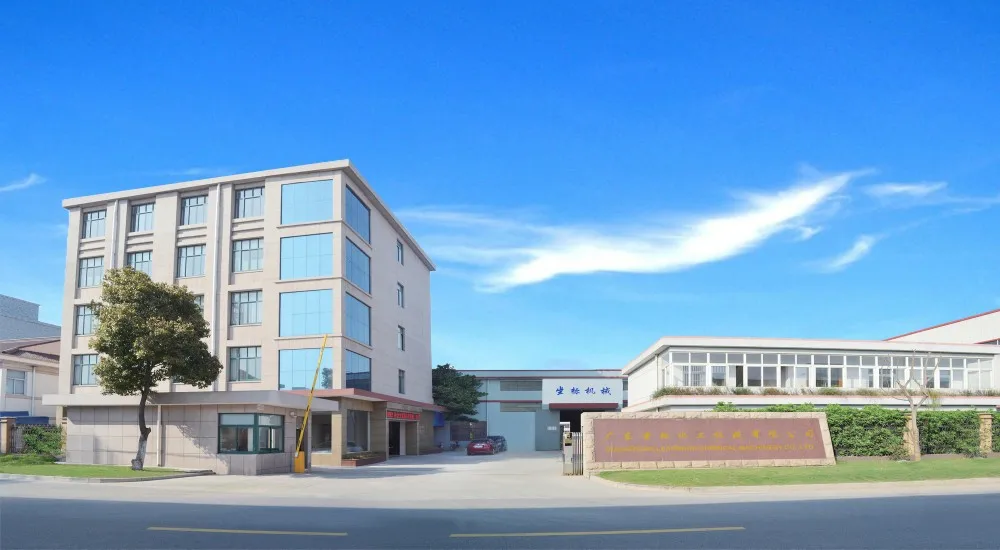

Our Company

Guangdong Leadmark Chemical Machinery Co., Ltd. is specializing in the design, development, production and sales of chemical machinery and complete sets of non-standard chemical equipment. Our company mainly products: high-speed dispersing machine, vacuum dispersing machine, high-viscosity mixer, horizontal sanding machine, basket sanding machine, three-roller machine, reaction kettle, high-speed dispersion kettle, multi-functional dispersion Chemical equipment such as kettles and stainless steel pull cylinders. Our company have rich production experience, strong technical force, strong R & D team, flexible design and production of various standard and non-standard equipment base on the needs of users, our company adheres to the integrity-based, quality assurance, service quality, multi-variety Operating characteristics and service concept .Our professional and experienced service engineers will give you the most professional solutions and services. Our company is based on the principle of "customer first, quality and service". In additon,we could supply products with high quality and reasonable price.Choosing us,we would not let you down.

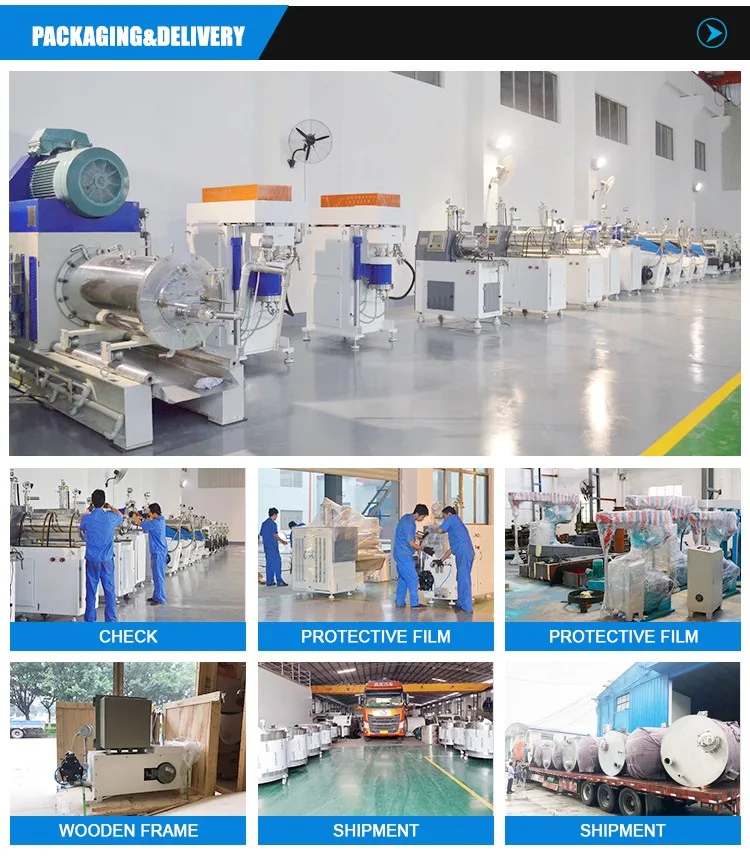

Packing & Delivery
